CAT6 Network Ethernet Patch Cable Assembly

Product Information:
1. Frequency - 250 MHz
2. Transmission Speed - 1000BASE-TX
3. Available Length - 0.5M~30M or Longer
4. Connectors - Rj45 Plug unshielded
5. Condcutor- 24AWG or 26AWG or 28AWG (America wire gague)
6. Cable Construction - unshielded
7. Jacket- PVC or LSZH or PE
8. Install - Used outdoor
  • DESCRIPTION
In the Cat 6 Ethernet of systems, due to the limitations of the equipment at the construction site and the professional level of the construction personnel, the electrical performance stability of the Patch Cable made cannot be guaranteed, and the electrical performance is also somewhat different from that of the Patch Cable produced by professional Network Cable manufacturers. So you should pay attention to the following requirements in order to improve the success rate of hand-made Cat6 Patch Cable of RJ45 Plug.

1. Attention should be paid to minimize the unbuttoned length of the wires that have not penetrated into the connector of the plug connector. Do not unbutton all the stripped wires, otherwise the electrical performance of the jumper will deteriorate.

2. When threading cables, pay attention to arrange the threading sequence according to the standard to minimize the crossover between cables.

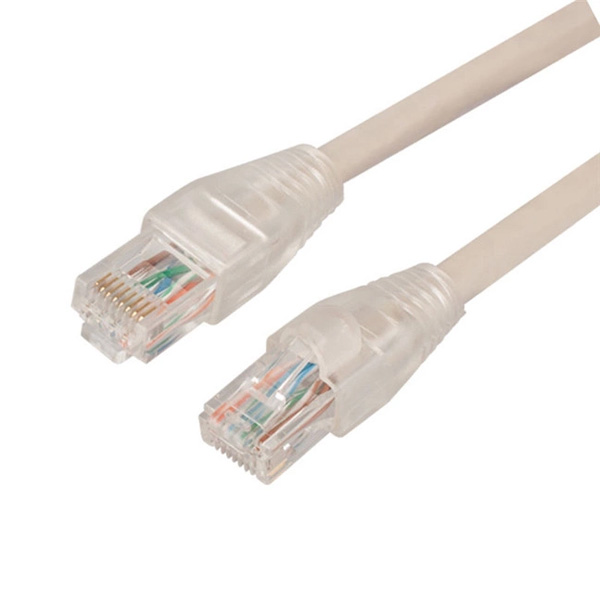

CAT6 Network Ethernet Patch Cable Assembly

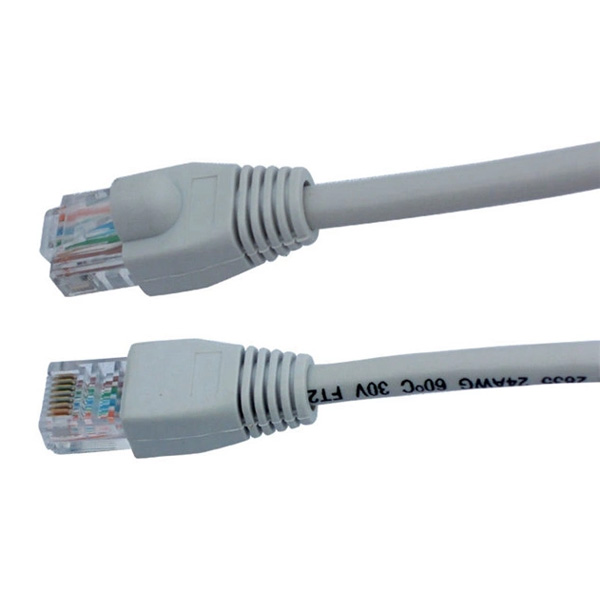

CAT6 Network Ethernet Patch Cable Assembly

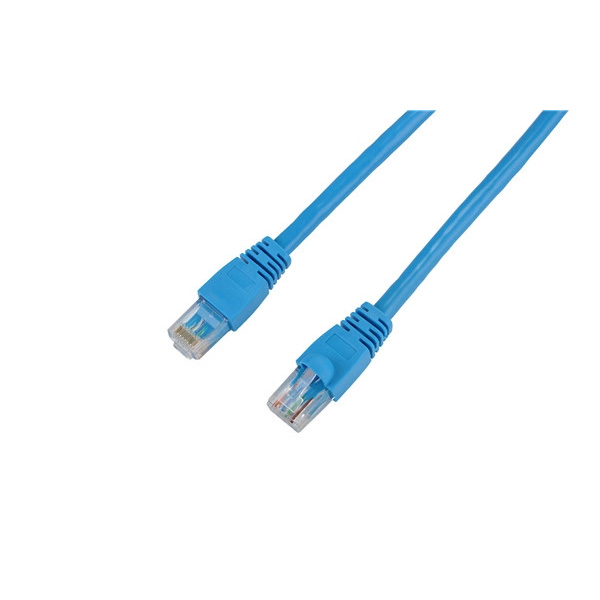

CAT6 Network Ethernet Patch Cable Assembly

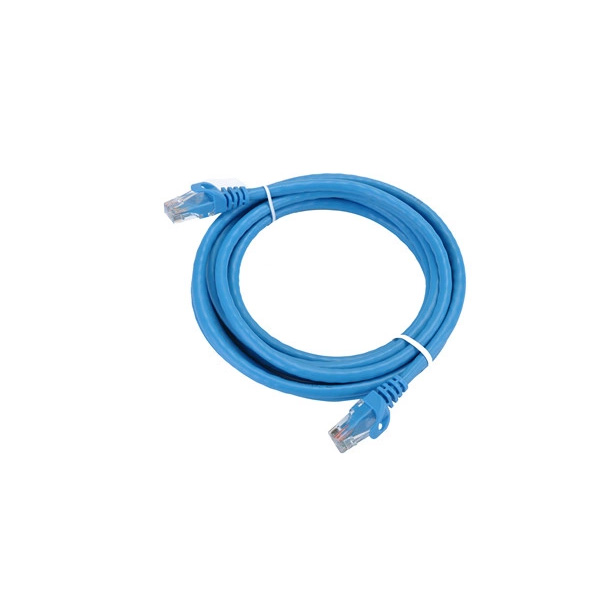

CAT6 Network Ethernet Patch Cable Assembly
CAT6 Network Ethernet Patch Cable Assembly
CAT6 Network Ethernet Patch Cable Assembly

Applications
HP Server, Router switch Lan firewall Modern, Computer mac IP phones TV, Gaming system PS4 PS3 xbox 360 lan network networks networking switch TV ADSL computer laptop netgear TPlink router moderm NAS VoIP phones POE Server media players, PS3 PS4 Xbox360 gaming system.

CAT6 Network Ethernet Patch Cable Assembly
