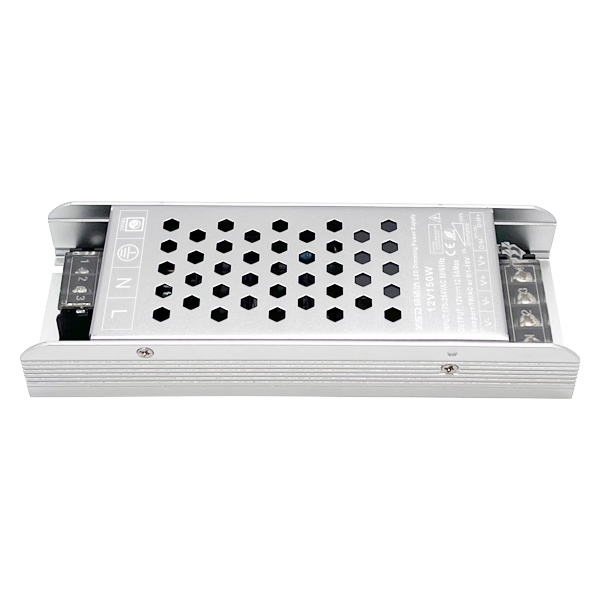

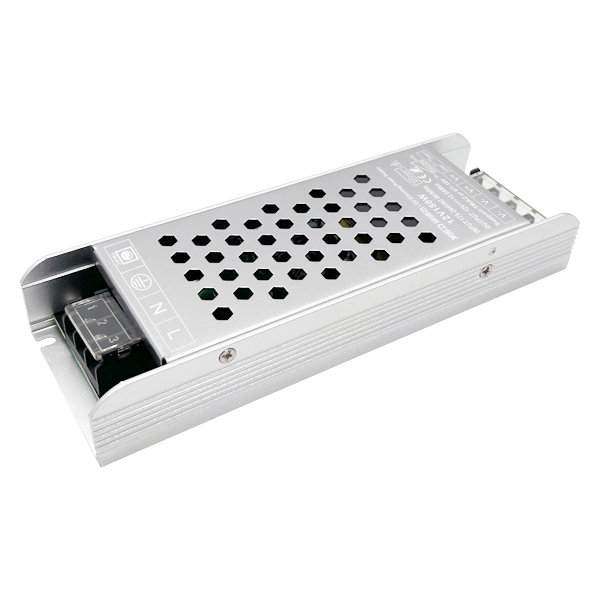

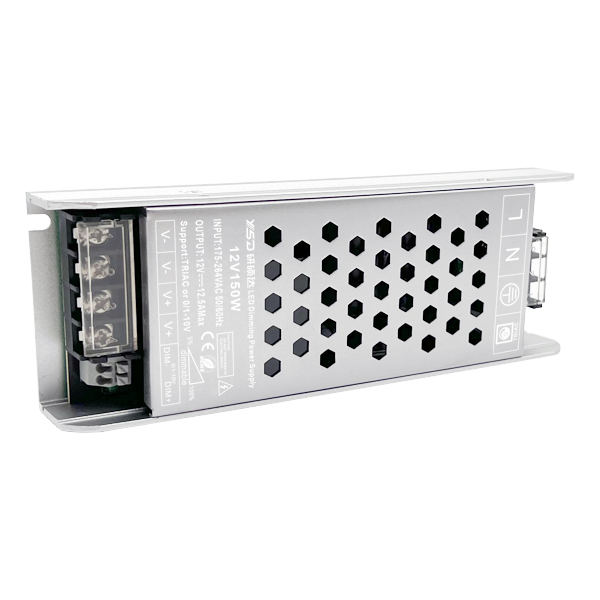

YSD power supply is adimmer light switch   company in China with over 15 years experience ; dimmer 150W power supply of CP series Triac dimmer + 0-10V dimmable  /dimmable light switch/dimming light bulbs， Soft and smooth, Flicker-free, Jitter free, A variety of dimming, simultaneous control, no interference; Widely used in light switch dimmer such as Europe,Australia and America(Lutron, Clipsal, Dynalite) series of dimmers; as well as philips hue dimming switch, led outdoor christmas lights, 12v dimmer switch power suuply. dimmer light switch power supply. Very good quality with excellent components like adjustable resistance



● Design for indoor installations

● Triac dimmer /0-10V dimmer /1-10V dimmer /10V PWM dimmer /resistance       DIM dimmer

● Dimming range: 0~100%, LED start at 1% possible.

● 0-100% flicker-free, High frequency exemption level.

● Over load / Over temp. / Short circuit / Over voltage protection, recover automatically.

● Cooling by free air convection

● 100% full load burn-in test

● Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.



Specification

MODEL	dimmer switch			YSD-150WHCP-12TL			YSD-150WHCP-24TL
OUTPUT	Output voltage			12VDC			24VDC
	Output voltage range			12VDC±0.5VDC			24VDC±0.5VDC
	Output Current			Max 12.5A			Max 6.3A
	Output power			Max 150W
	Output power range			0~150W
	With or without strobe			No strobe
	Dimming range			0~100%, dimming depth: Max. 1%
	Ripple & Noise			≤200mV			≤400mV
INPUT	Dimming interface			Triac dimmer /0-10V dimmer /1-10V dimmer /10V PWM dimmer /resistance DIM dimmer
	Input voltage			175-264Vac or 100-130Vac
	Frequency			50/60Hz
	Input current			1.32A/230Vac or 2.6A/115Vac
	Power factor			PF>0.55/230Vac, at full load
	Efficiency (typ.)			86%			88%
	Inrush current(typ.)			Cold start 55A at 230Vac
	Control surge capability			L-N:2KV
	Leakage current			Max. 0.5mA
ENVIRONMENT	Working temperature			ta: -30°C ~ 50°C tc: 80°C
	Working humidity			20 ~ 95%RH, non-condensing
	Storage temp., humidity			-40°C ~ 80°C, 10~95%RH
	Vibration			10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTION	Overtemperature			Protection type:Shut down o/p voltage,re--power on to recover
	Over voltage protection			Shut down the output when non-load voltage≥13V,re-power on to recover after fault condition is removed.			Shut down the output when non-load voltage≥26V,re-power on to recover after fault condition is removed
	Over load protection			Shut down the output when current load ≥110%, auto recovers.
	Short circuit protection			Protection type: 1. When the first-level short-circuit protection is triggered, the fault can be automatically recovered;2. When the second-level short-circuit protection is triggered, the power needs to be turned on again after the fault is eliminated
SAFETY&EMC	Withstand voltage			I/P-O/P: 3750Vac
	Isolation resistance			I/P-O/P: 100MΩ/500VDC/25°C/70%RH
	Safety standards			IEC/EN61347-1, IEC/EN61347-2-13
	EMC emission			EN55015, EN61000-3-2 Class C, IEC61000-3-3
	EMC immunity			EN61000-4-2,3,4,5,6,8,11 EN61547

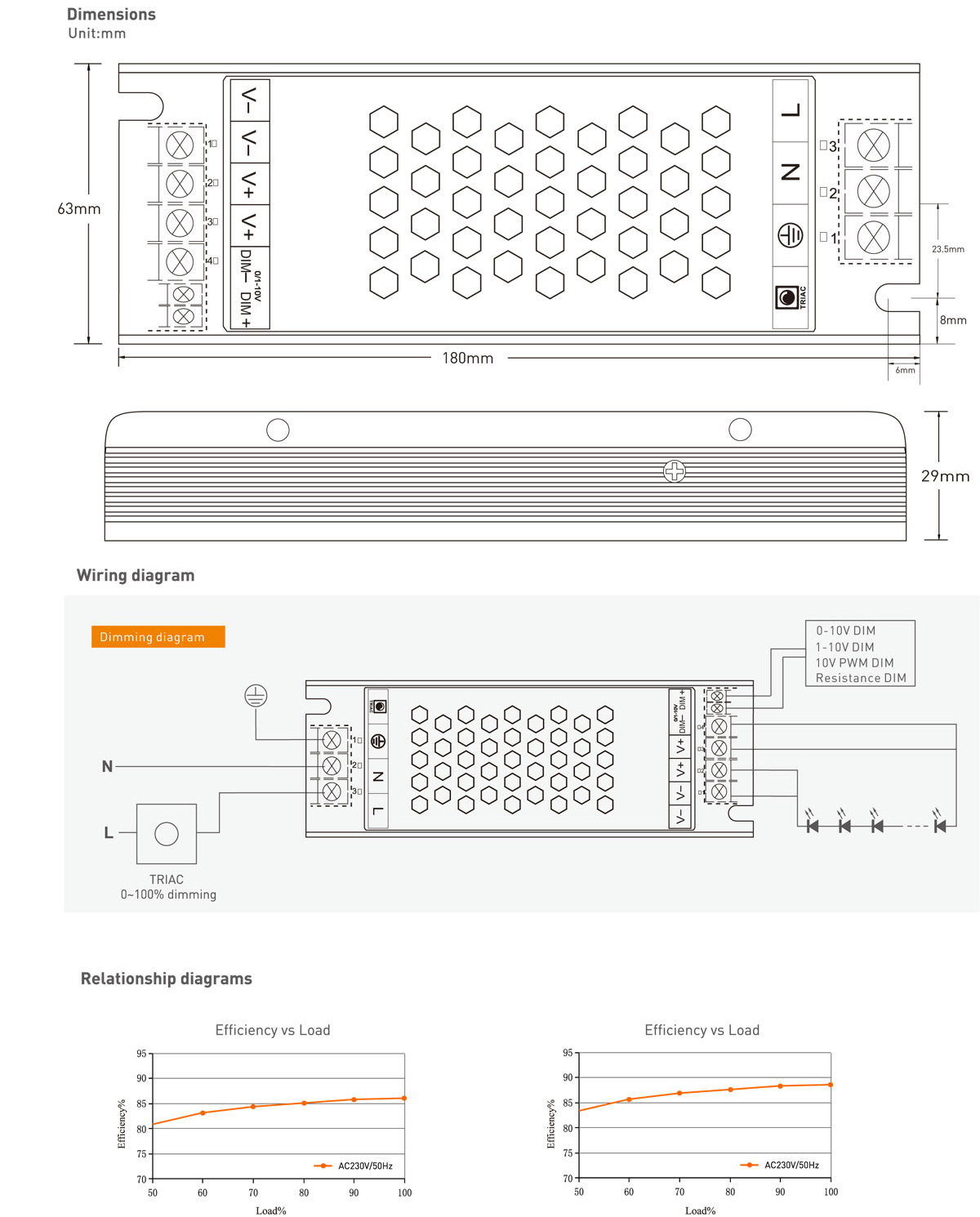

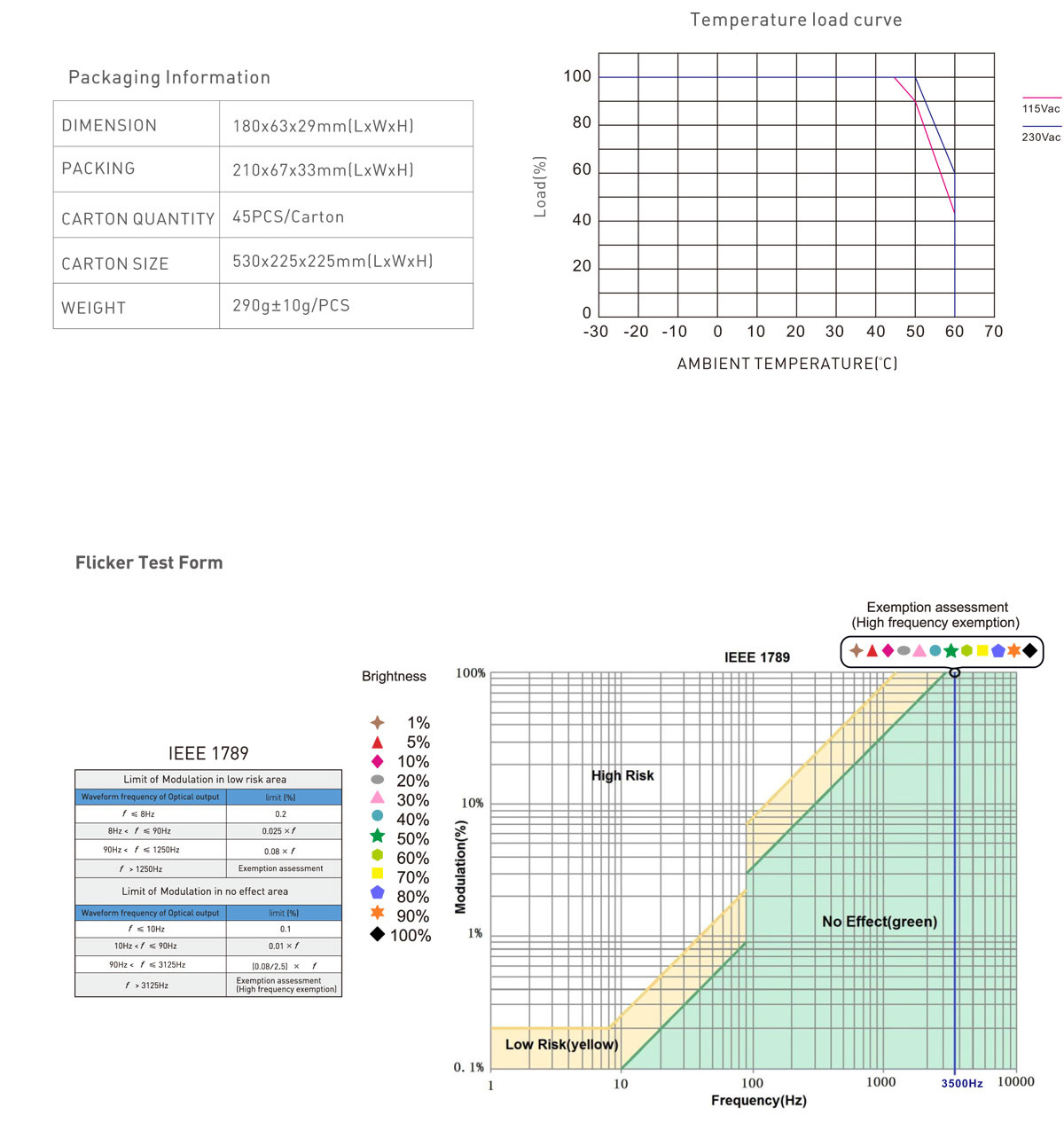

	Strobe test standard			IEEE 1789
NOTE	1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Ripple and noise test method: connect 0.1uF and 47uF capacitors in parallel at the terminal, and measure under 20MHZ bandwidth. 3.Ensure that the power supply is used under the rated parameters and environment.
