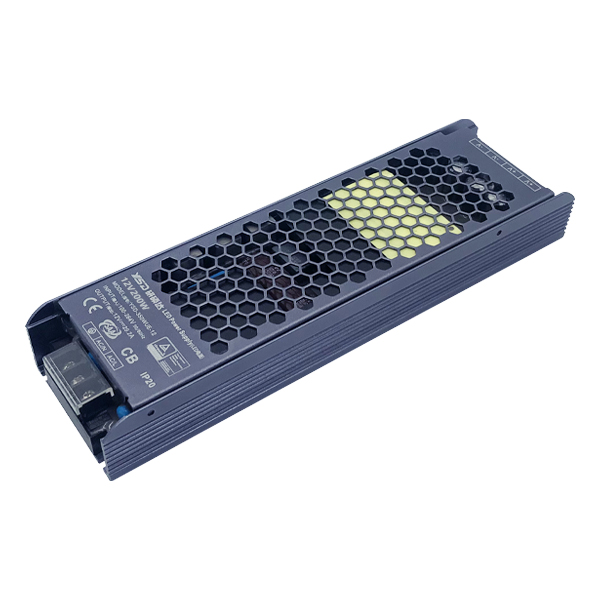

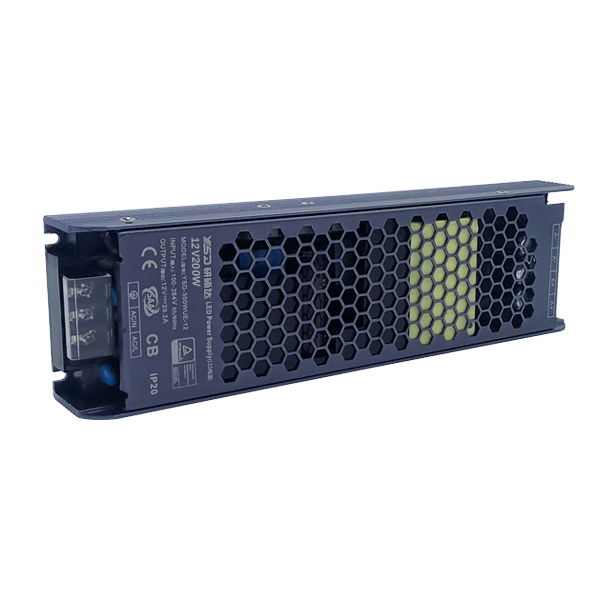

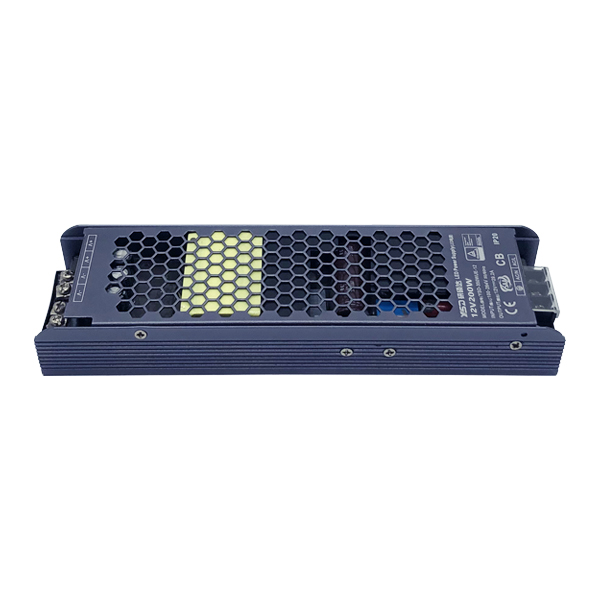

YSD power supply is excellent company with over 15 years experience on manufacturing power supply ; YSD new series -E series of our IP20 high PF POWER SUPPLY 12V 24V 36V 48V 200W with 5 years warranty ;have CE ,CB,ROHs ,BIS ,TUV,SAA certificate;perfect choice for indoor lighting project;input 100-277V ,PF>0.95 .could be used for indoor home decoration lighting , light strips etc.Very good quality with excellent components inside .Without fan,very quiet without any buzz or humming noice

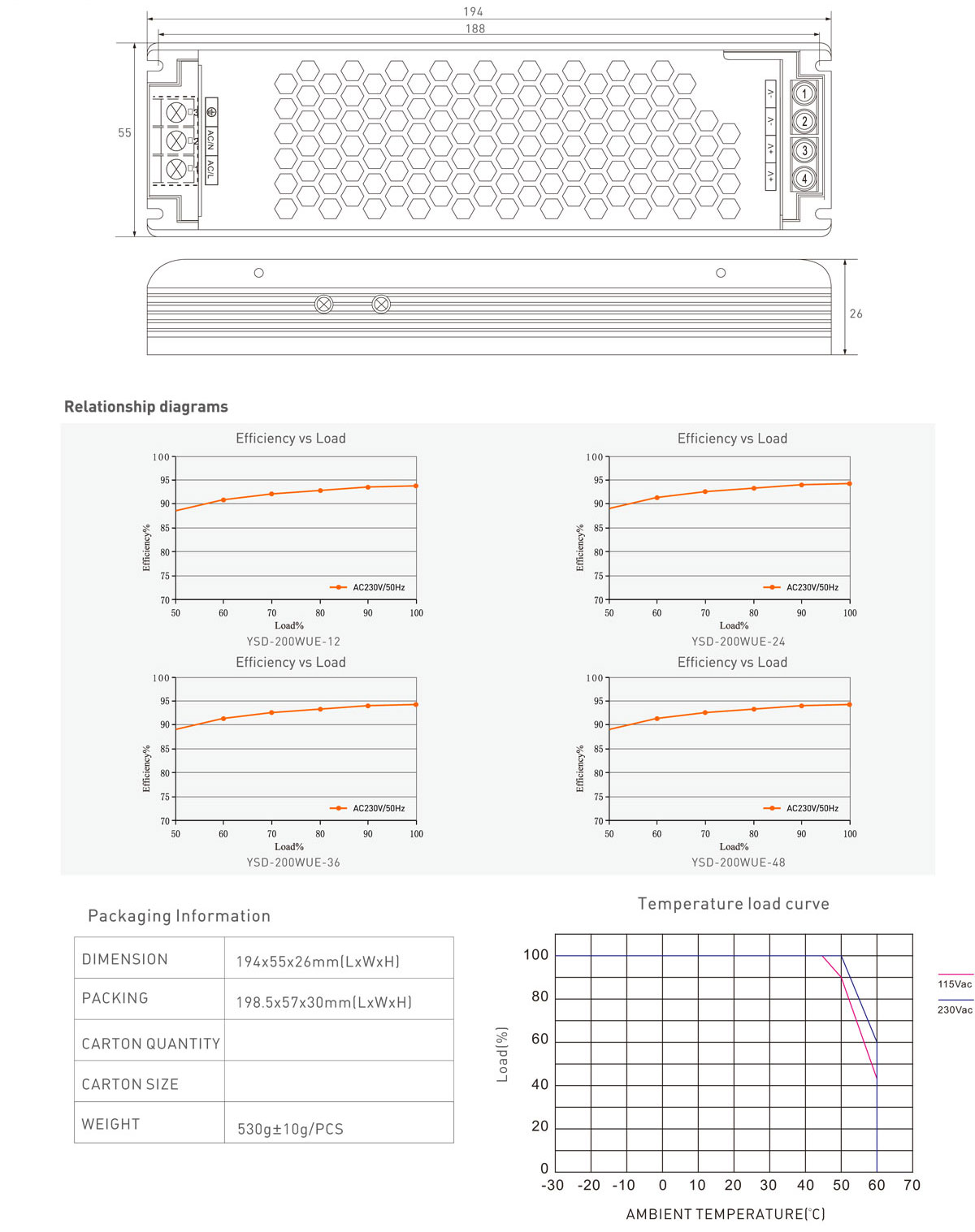

LED ultra-thin high PFC power supply (CV)
● Universal AC input/full range(100-264VAC)
● Built in active PFC function
● Efficiency up to 95%, super thin and small size.
● Protections:short circuit/over load/over voltage/over temperature
● Can withstand 300VAC surge input for 5S
● 150% peak load capacity (100ms)
● Fanless design,Cooling by free air, high reliability
● Suitable for internal lights application for Ⅰ/Ⅱ/Ⅲ.
● Widely used in LED lighting and IT equipment
● Compliance to worldwide safety regulation for led lightings.
| MODEL | LED power supply | YSD-200WUE-12 | YSD-200WUE-24 | YSD-200WUE-36 | YSD-200WUE-48 | ||||||||||
| OUTPUT | Output voltage | 12VDC power supply | 24VDC power supply | 36VDC power supply | 48VDC power supply | ||||||||||
| Output voltage range | 12VDC±0.3VDC | 24VDC±0.6VDC | 36VDC±0.9VDC | 48VDC±1.2VDC | |||||||||||
| Output Current | Max 16.6A | Max 8.3A | Max 5.5A | Max 4.16A | |||||||||||
| Output power | Max 200W | ||||||||||||||
| Output power range | 0~200W | ||||||||||||||
| Ripple & Noise | ≤450mV | ≤500mV | ≤800mV | ≤800mV | |||||||||||
| Linear Regulation | ±0.1% | ||||||||||||||
| Load Regulation | ±0.1% | ||||||||||||||
| Start-up Time (Typ) | 320ms/230VAC 500ms/115VAC | ||||||||||||||
| Rise Time(Typ) | 11ms/230VAC 11ms/115VAC | ||||||||||||||
| Hold Up Time(Typ) | 10ms/230VAC 10ms/115VAC | ||||||||||||||
| INPUT | Input voltage | 100-264Vac | |||||||||||||
| Frequency | 50/60Hz | ||||||||||||||
| Input current | 2.1~1A | ||||||||||||||
| Power factor | PF>0.95/230Vac, at full load; PF>0.98/115Vac, at full load | ||||||||||||||
| No-load power consumption | ＜0.5W | ||||||||||||||
| THD | ≤25% at 230Vac,at full load | ||||||||||||||
| Efficiency (typ.) | 93% | 94% | 94.5% | 94.5% | |||||||||||
| Inrush current(typ.) | Cold start:60A/230V | ||||||||||||||
| Control surge capability | L,N-PE:4KV | ||||||||||||||
| Leakage current | Max.0.5mA | ||||||||||||||
| ENVIRONMENT | Working temperature | ta: -30°C ~ 50°C tc: 80°C | |||||||||||||
| Working humidity | 20 ~ 99%RH, condensing(Waterproof) | ||||||||||||||
| Storage temp., humidity | -40°C ~ 80°C, 10~95%RH | ||||||||||||||
| Vibration | 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes. | ||||||||||||||
| PROTECTION |
Overtemperature |
Protection type:Shut down o/p voltage,re--power on to recover | |||||||||||||
| Over voltage protection | Output voltage ≥14-18V, turn off the output,after the abnormality is eliminated, re-energize to recover | Output voltage ≥29-35V, turn off the output,after the abnormality is eliminated, re-energize to recover | |||||||||||||
| Over load protection | Shut down the output when current load ≥110%~150%, auto recovers | ||||||||||||||
| Short circuit protection | Protection type: It can be automatically restored after the fault is eliminated. | ||||||||||||||
| SAFETY&EMC | Withstand voltage | I/P-O/P: 3750Vac | |||||||||||||
| Isolation resistance | I/P-O/P: 100MΩ/500VDC/25°C/70%RH | ||||||||||||||
| Safety standards | IEC/EN61347;IEC/EN60950;IP67 | ||||||||||||||
| EMC emission | EN55015:2013;EN61547:2009/EN61000-3-2:2014;EN61000-3-3:2013 | ||||||||||||||
| EMC immunity | EN61000-4-2,3,4,5,6,8,11 EN61547 | ||||||||||||||
| NOTE |
1.All parameters not specifically mentioned are measured at 230VAC input, rated load and 25°C ambient temperature. 2.Use 12 twisted-pair wires terminated with 0.1uF and 47uF parallel capacitors to measure ripple and noise under a 20MHz bandwidth. 3.Tolerance: including setting tolerance, wire gauge and wire gauge. 4.Ensure that the power supply is used under the rated parameters and environment |
||||||||||||||
